Enclosures
Fuel Cell Enclosures
Fuel cells can be left to provide reliable, remote power for weeks or even months. When coupled with the right enclosure for your application, a fuel cell can give you these extended runtimes whatever the location or climate conditions. Each case contains the appropriate sized fuel cell, fuel cartridges and batteries.
ProCube
ProEnergyCase
ProCabinet
ProEnergyBox
Accessories
Real-time connection to your fuel cell enabling continuous monitoring.
Remote Monitoring
A range of accessories are available to support setup, control, and operation.
Fuel Cell Solution
Fuel Cells provide off grid power for extended periods of time.

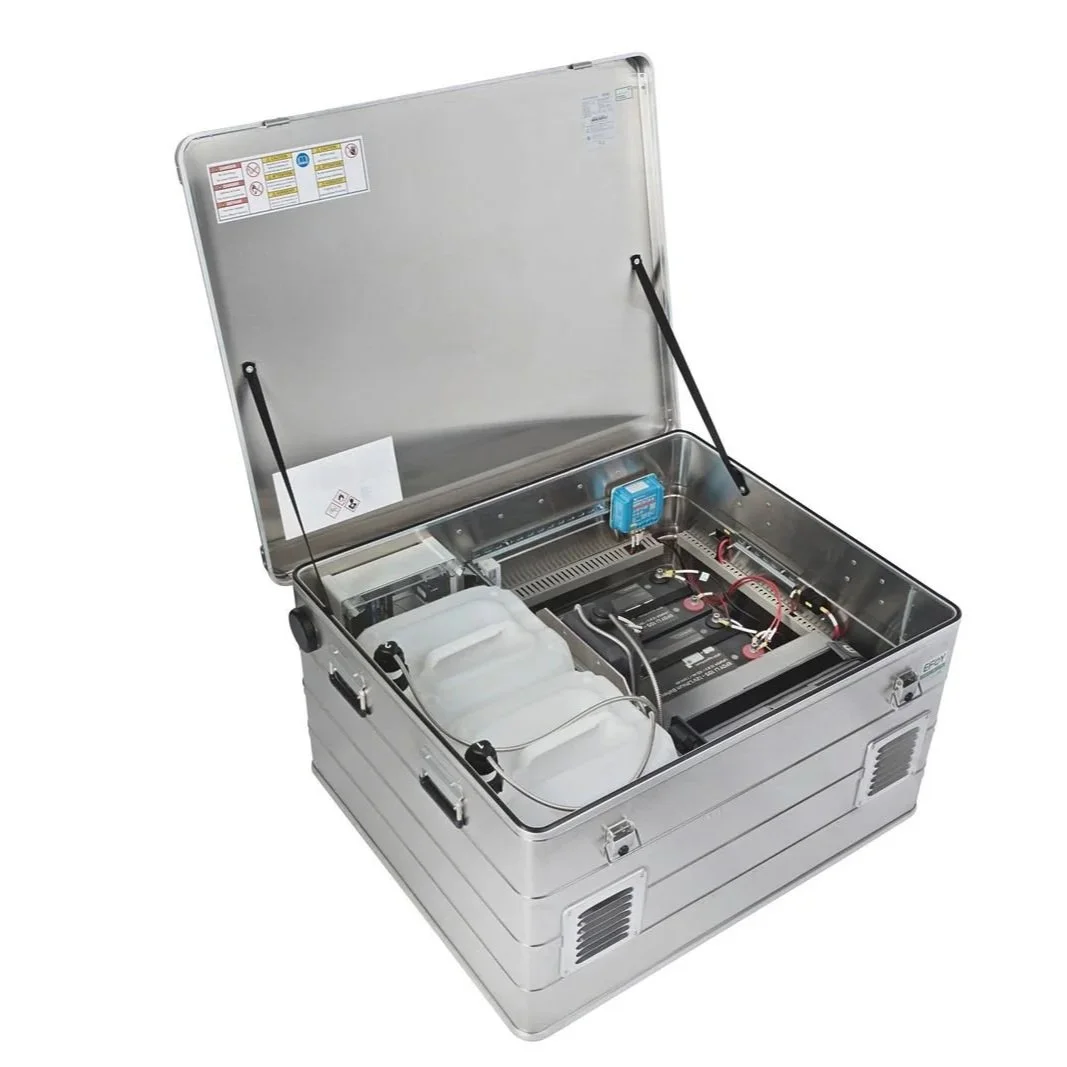

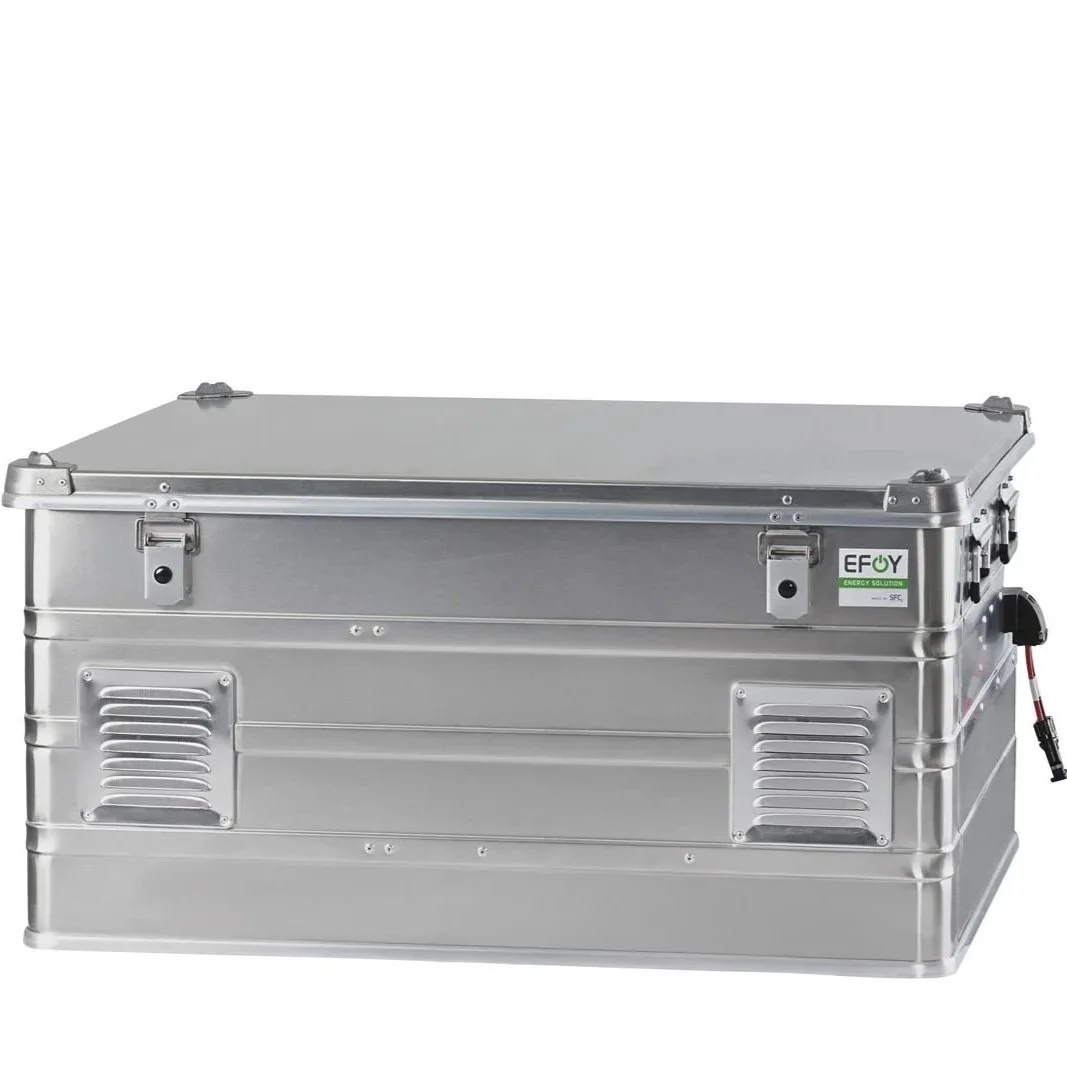

EFOY ProCube
The EFOY ProCube is a mobile, maintenance-free complete solution for off-grid power supplies – instantly ready for use at all times and in any location. The box is suitable for outdoor use and is pre-configured so it can be customised to specific requirements by selecting the relevant size of EFOY Pro, fuel cartridge and battery.
The EFOY ProCube can be used temporarily, e.g. on construction sites, or permanently in hard-to-access areas. This complete energy solution is perfect for applications outdoors and for covert operations. In hybrid mode, the EFOY ProCube can be used as a back-up or as an extension for solar energy systems, for example.

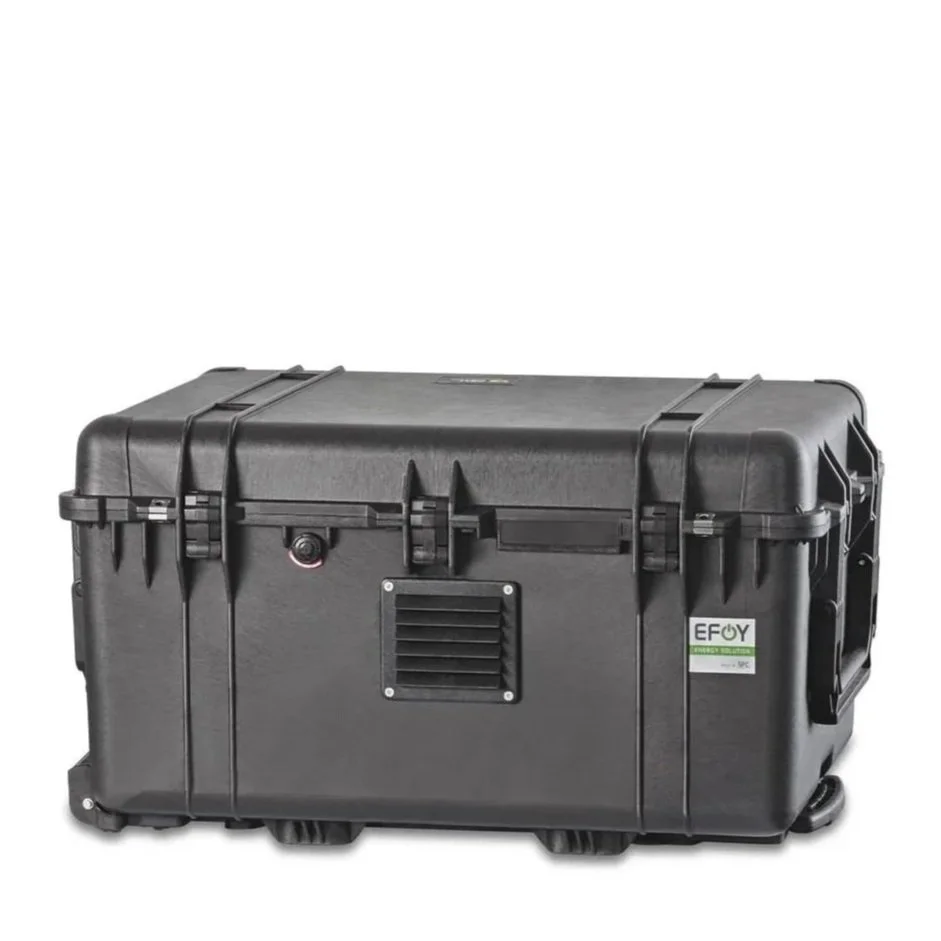

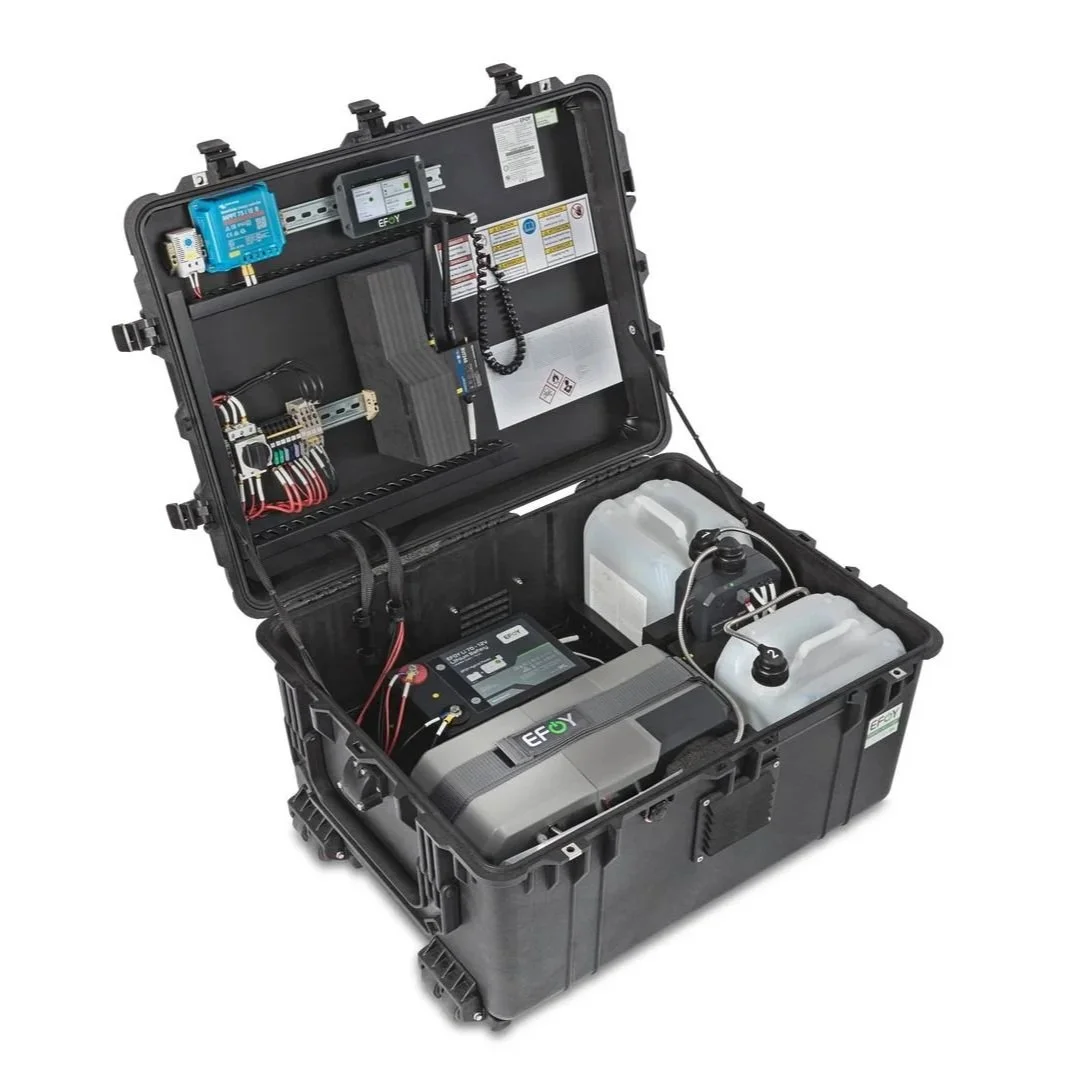

EFOY ProEnergyCase
The EFOY ProEnergyCase is a portable, maintenance-free, all-in-one solution for grid-independent power supplies. The robust housing and fast setup process means that the EFOY ProEnergyCase is ready for use at any time and in any location.
One EFOY Pro Fuel Cell, up to two batteries and up to two M10 fuel cartridges can be integrated into the EFOY ProEnergy Case. The integrated solar charging control makes the EFOY ProEnergyCase ideal for hybrid operation with solar systems. Long-lasting, independent operation without user intervention is therefore guaranteed.

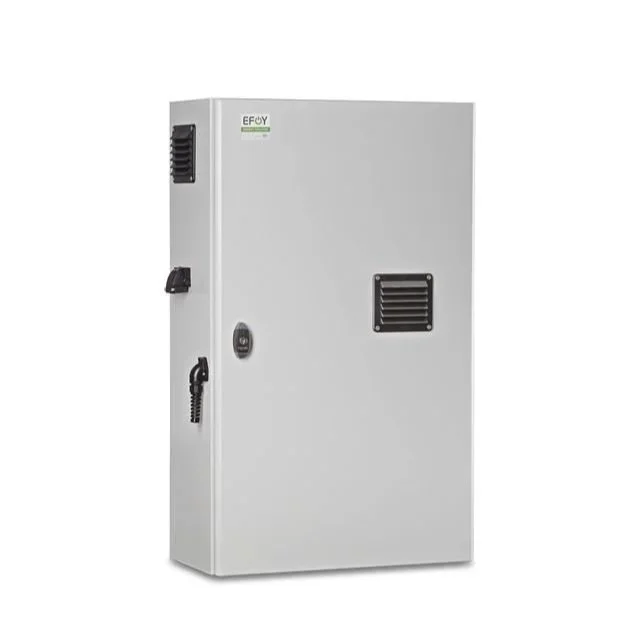

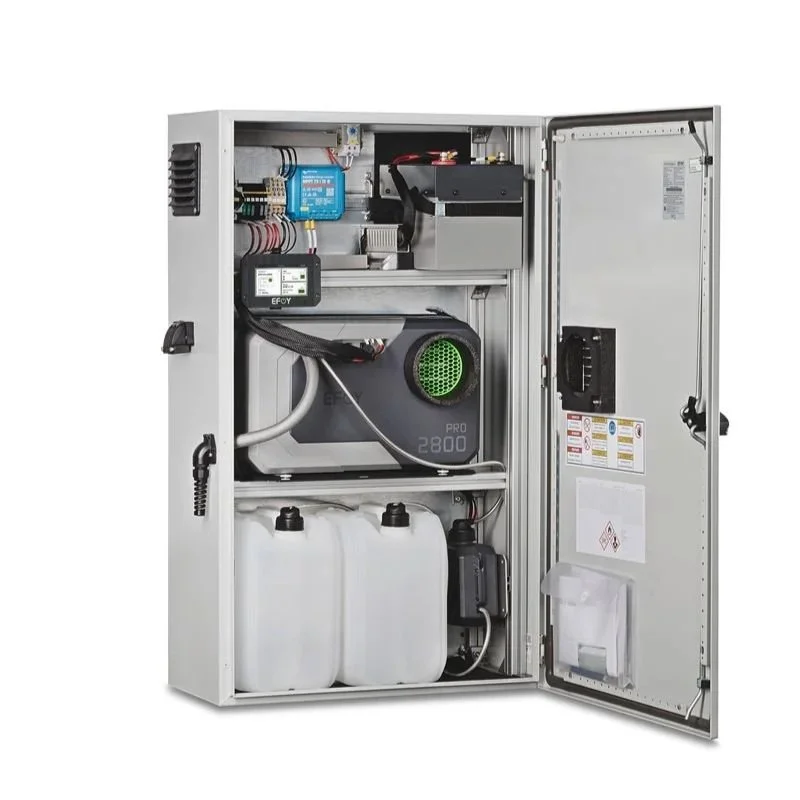

EFOY ProCabinet
EFOY ProCabinets are complete outdoor energy solutions for self-sufficient, stationary power supply with EFOY Pro Fuel Cells – completely without mains connection. The stationary complete energy solutions consist of a control cabinet with space for one EFOY Pro Fuel Cell and, depending on the application, one or more fuel cartridges and batteries.
EFOY ProCabinets can be designed according to individual requirements and thus offer sufficient space for individual installations. In addition to the standard solar charge controller, different types of charge controllers, for example a GSM modem for remote monitoring of the system or a voltage converter for voltage adjustments can be installed.
EFOY ProCabinets are suitable for stand-alone operation or as a back-up solution for an uninterruptible power supply (UPS). With a power consumption of 50 W, the EFOY ProCabinet with two MT60 tanks provides reliable power for 2,640 operating hours or 110 days, without user intervention.

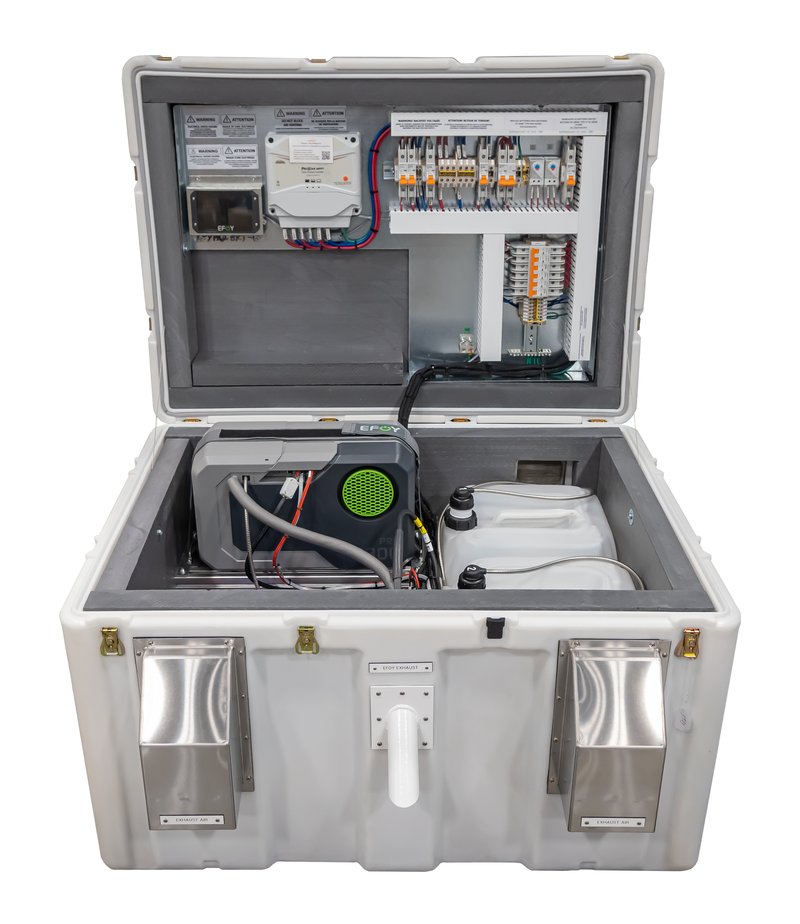

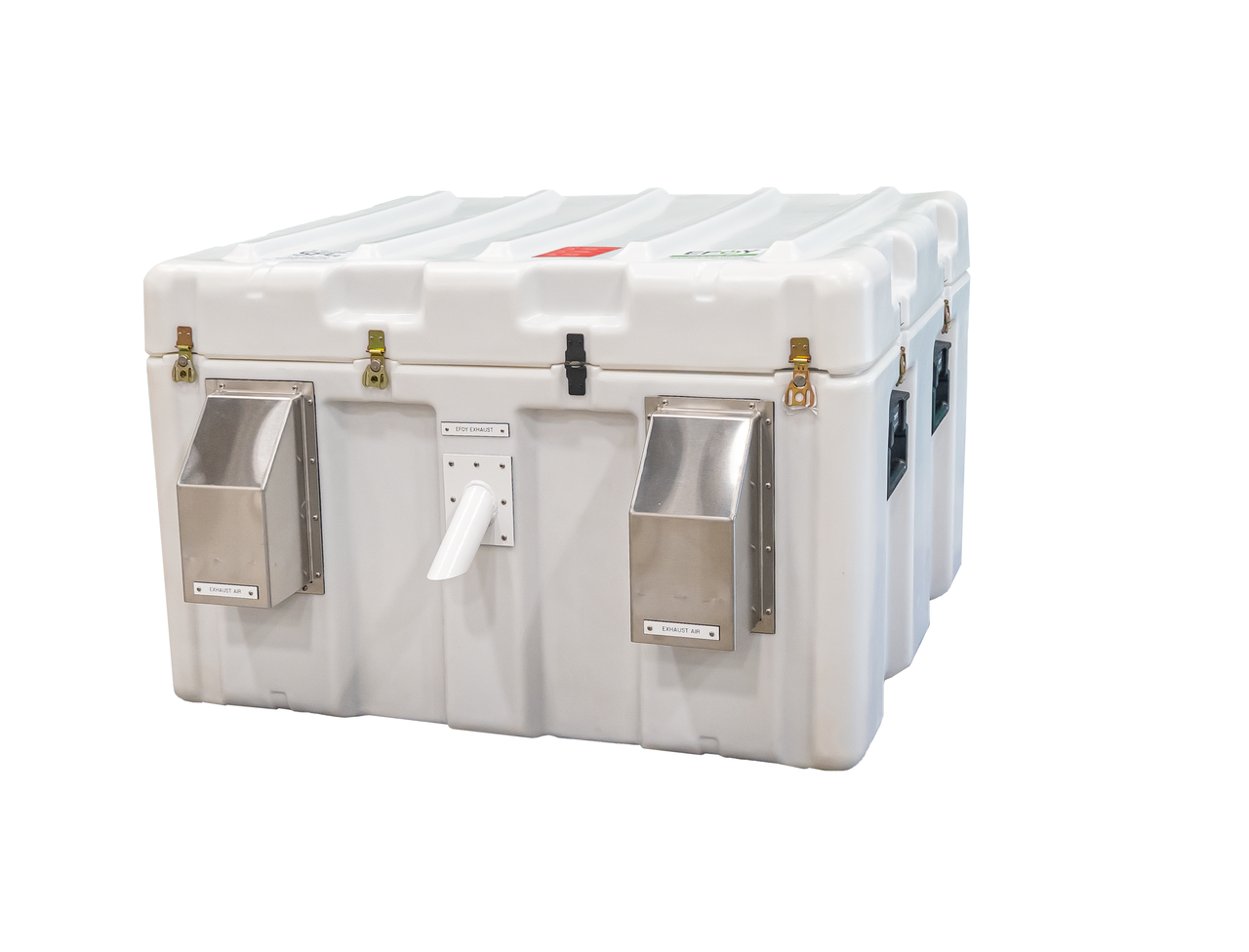

EFOY ProEnergyBox
The EFOY ProEnergyBox has been developed for use in all weather conditions between – 40 °C and + 50 °C. One EFOY Pro Fuel Cell, up to two batteries, a solar charge controller and a maximum of two M28 fuel cartridges can be integrated in the EFOY ProEnergyBox. This guarantees long autonomy without user intervention.
Effective temperature regulation means that the waste heat from the EFOY Pro Fuel Cell can be used when the temperature is below zero to keep the energy solution warm and to prevent the battery and electronics from freezing. For high ambient temperatures, an effective heat conduction system has been implemented to protect the components in the box from heat.
The EFOY ProEnergyBox offers sufficient space for customer-specific installations and can be configured to the individual customer’s needs. The EFOY ProEnergyBox is compatible for hybrid operation with solar power and is therefore perfect as a back-up or extension for solar energy systems.
Reach out to our team today to discuss your project and get guidance on the best fuel cell solution for your needs.
