Direct Methanol Fuel Cells
EFOY Fuel Cells
Conventional power sources are often unreliable or offer only short periods of supply. Solar-powered systems cannot guarantee a reliable power supply throughout the whole year, batteries have very limited autonomy and generators produce harmful emissions. EFOY fuel cells are the perfect power generator, meeting all requirements for stationary and mobile applications.
Off-Grid Power
EFOY fuel cells are the ideal power generators for a wide range of stationary and mobile applications. They generate electricity reliably for weeks and months without user intervention. The EFOY direct methanol fuel cells are available as EFOY and EFOY Pro models with an output of up to 125 W depending on the power requirements and user requirements.
Fuel Cell Solution
Fuel cells provide a reliable, off-grid power source. They are clean, quiet and require little regular maintenance. A fuel cell will switch on to automatically charge your battery and switch off again once the charge is complete.
This gives you more than permanently fully charged power reserves. Your batteries will also last a lot longer because constant recharging protects them against a damaging exhaustive discharge.
Accessories
Real-time connection to your fuel cell enabling continuous monitoring.
Remote Monitoring
A range of accessories are available to support setup, control, and operation.
Enclosures
Ensure your fuel cells are protected in even the most challenging of conditions
EFOY Fuel Cells

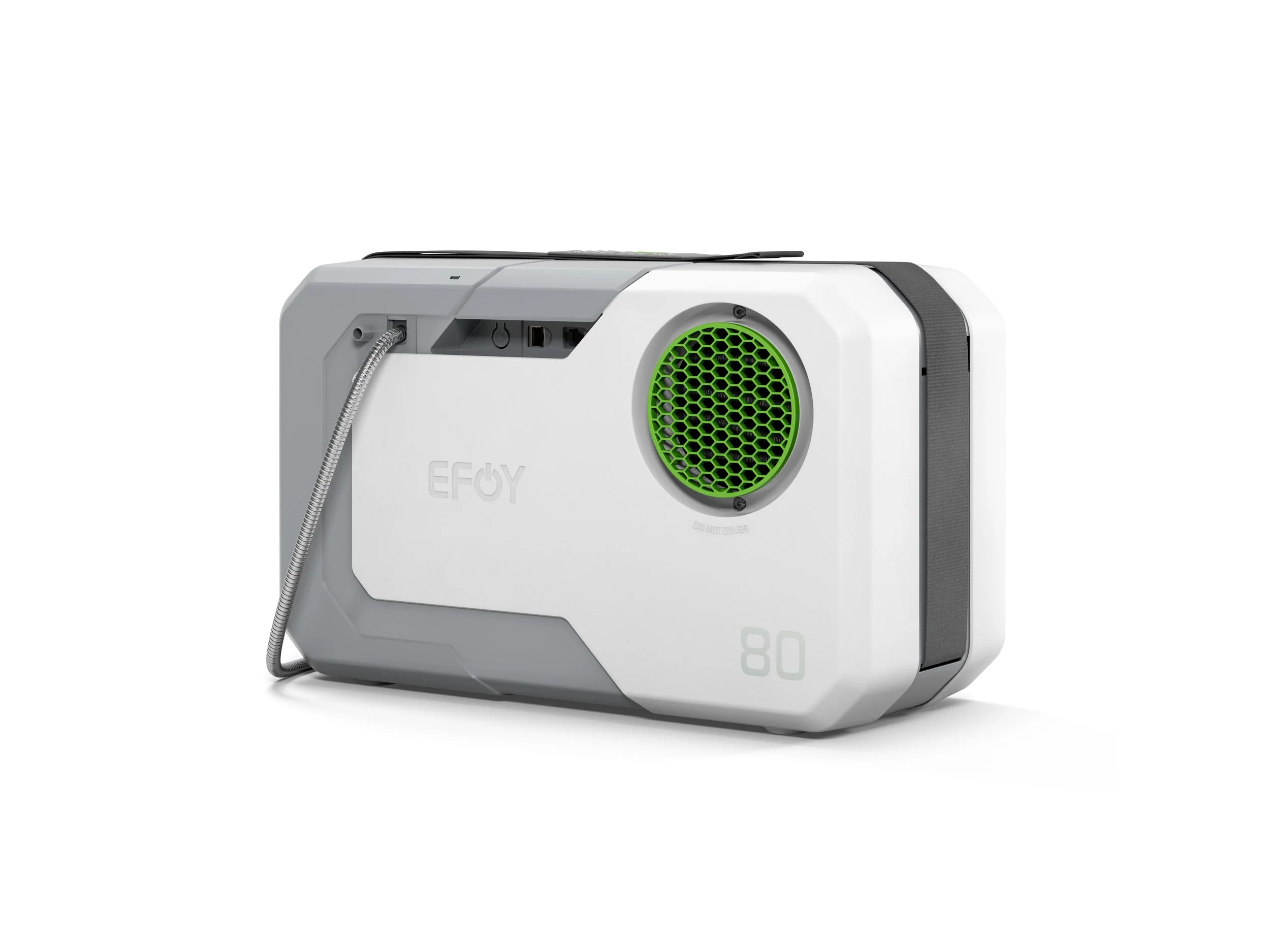

EFOY 80
The EFOY 80 Set is a 40W fuel cell operating at 12 or 24VDC.
EFOY 150
The EFOY 150 Set is a 75W fuel cell operating at 12 or 24VDC.

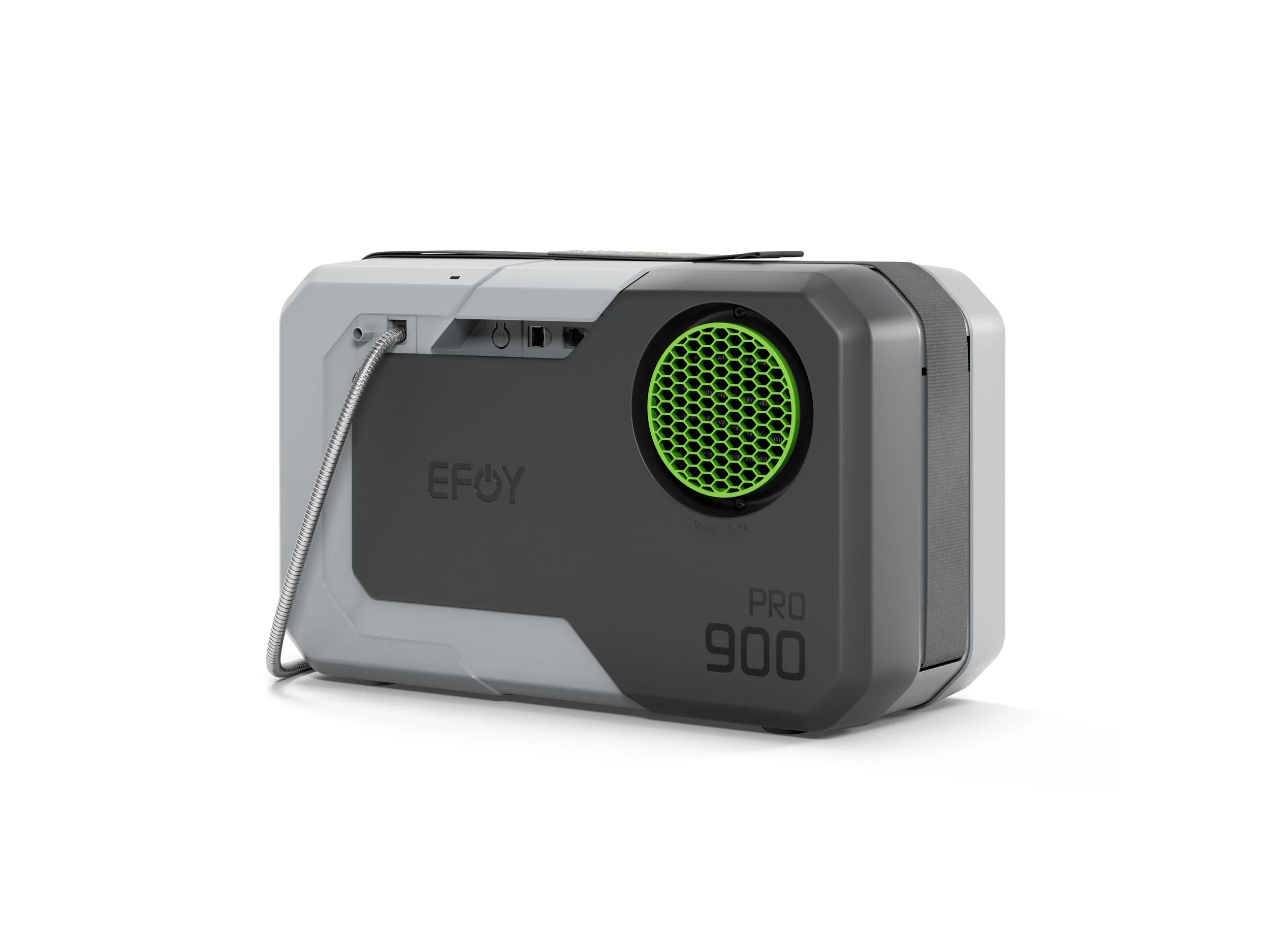

EFOY Pro 900
The EFOY Pro 900 Set is a 42W fuel cell, operating at 12 or 24VDC.
EFOY Pro 1800
The EFOY Pro 1800 Set is an 82W fuel cell operating at 12 or 24VDC.
EFOY Pro 2800
The EFOY Pro 2800 Set is an 125W fuel cell operating at 12 or 24VDC.

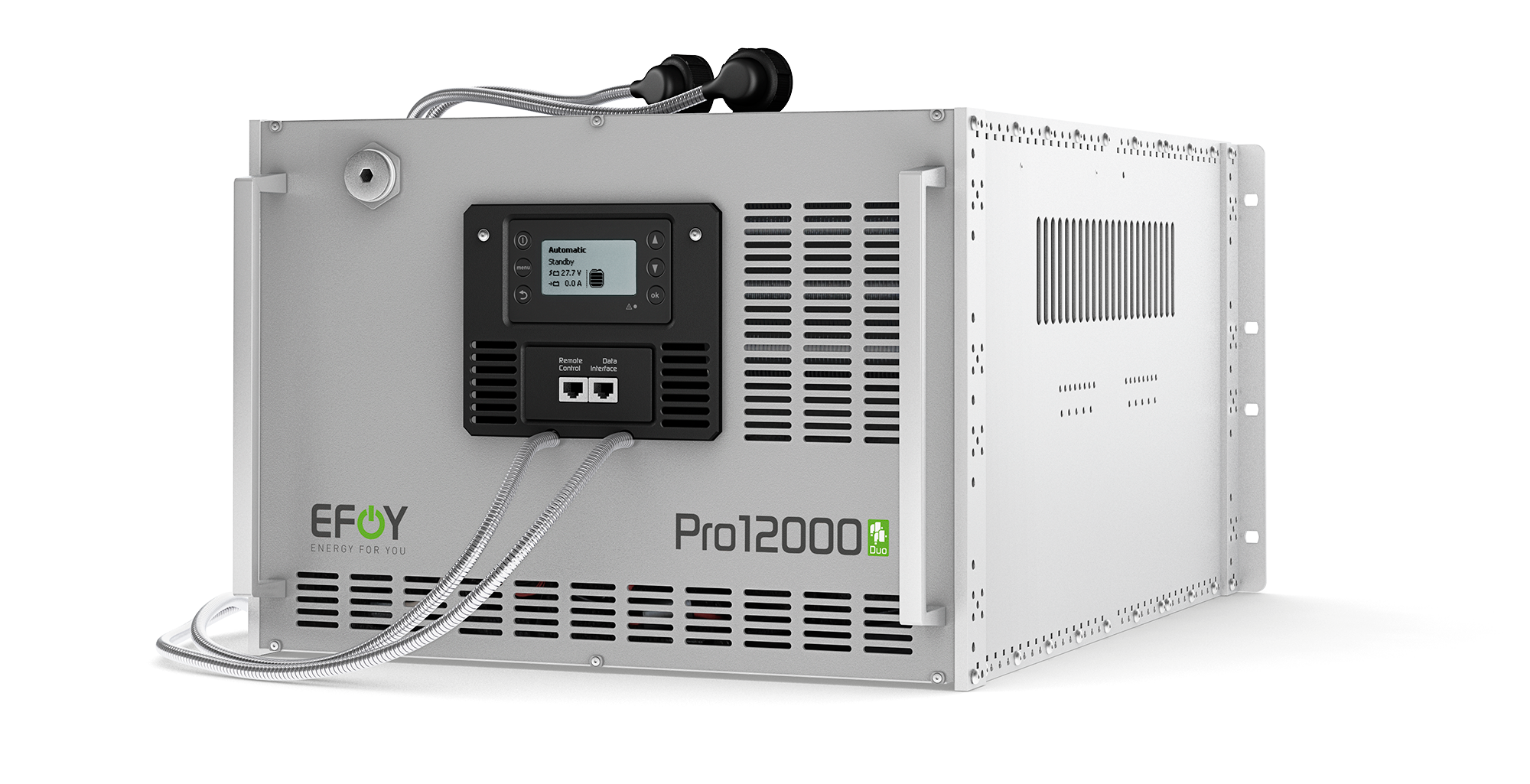

EFOY Pro 12000 Duo
The EFOY Pro 12000 Duo is a 500W fuel cell operating at 24 or 48VDC.
Model Overview
Fuel Cell Technology
Learn how fuel cell technology works and why it’s an efficient energy solution.
Types of Fuel Cells
Discover the different types of fuel cells, including DMFC, PEM and solid oxide.
Benefits of Fuel Cells
Understand the environmental and operational benefits of fuel cells.
EFOY Methanol Cartridges
EFOY Fuel Cell Methanol M5 (Box of 2)
Capacity: 5 Litres
Weight: 4.3 kg
Electrical nominal capacity: 5.6 kWh
Dimensions L x W x H: 190 x 145 x 287 mm
Autonomy @50 W: 111 hrs
UN Number: UN3473
EFOY Fuel Cell Methanol M10 (Box of 2)
Capacity: 10 Litres
Weight: 8.4 kg
Electrical nominal capacity: 11.1 kWh
Dimensions L x W x H: 230 x 193 x 2318 mm
Autonomy @50 W: 222 hrs
UN Number: UN3473
EFOY Fuel Cell Methanol M28
M28 Adapter Required
Capacity: 28 Litres
Weight: 23.4kg
Electrical nominal capacity: 31.1 kWh
Dimensions L x W x H: 370 x 285 x 395 mm (H=425mm with adapter)
Autonomy @50 W: 622 hrs
UN Number: UN3473

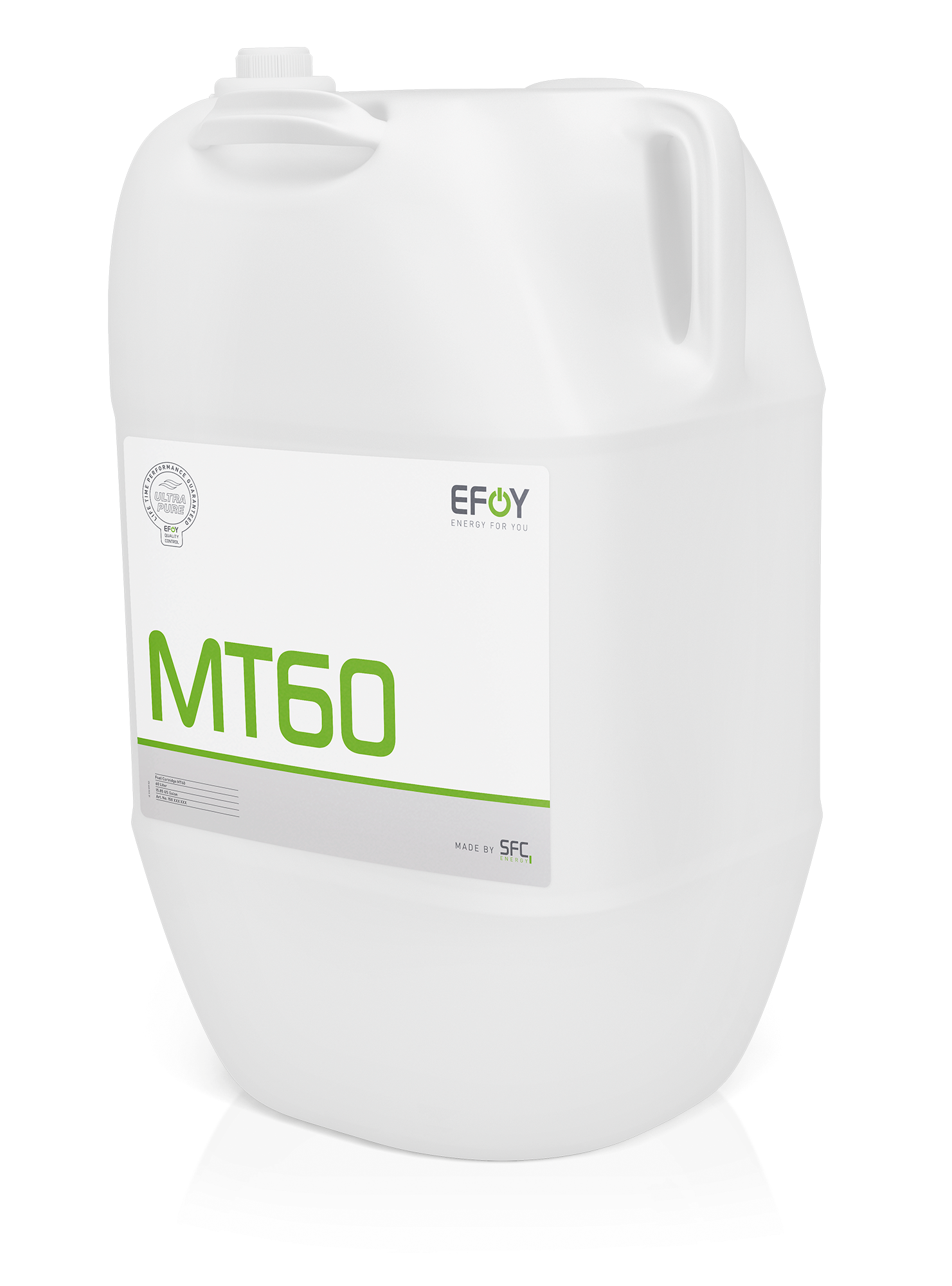

EFOY Fuel Cell Methanol MT60 [55kg]
Capacity: 60 Litres
Weight: 55 kg
Electrical nominal capacity: 66.7 kWh
Dimensions L x W x H: 340 x 390 x 670 mm
Autonomy @50 W: 1,333 hrs
UN Number: UN1230
Take a look at our full range of products including accessories and enclosures.
Reach out to our team today to discuss your project and get guidance on the best fuel cell solution for your needs.
