Modular Hydrogen Refuelling
HyQube

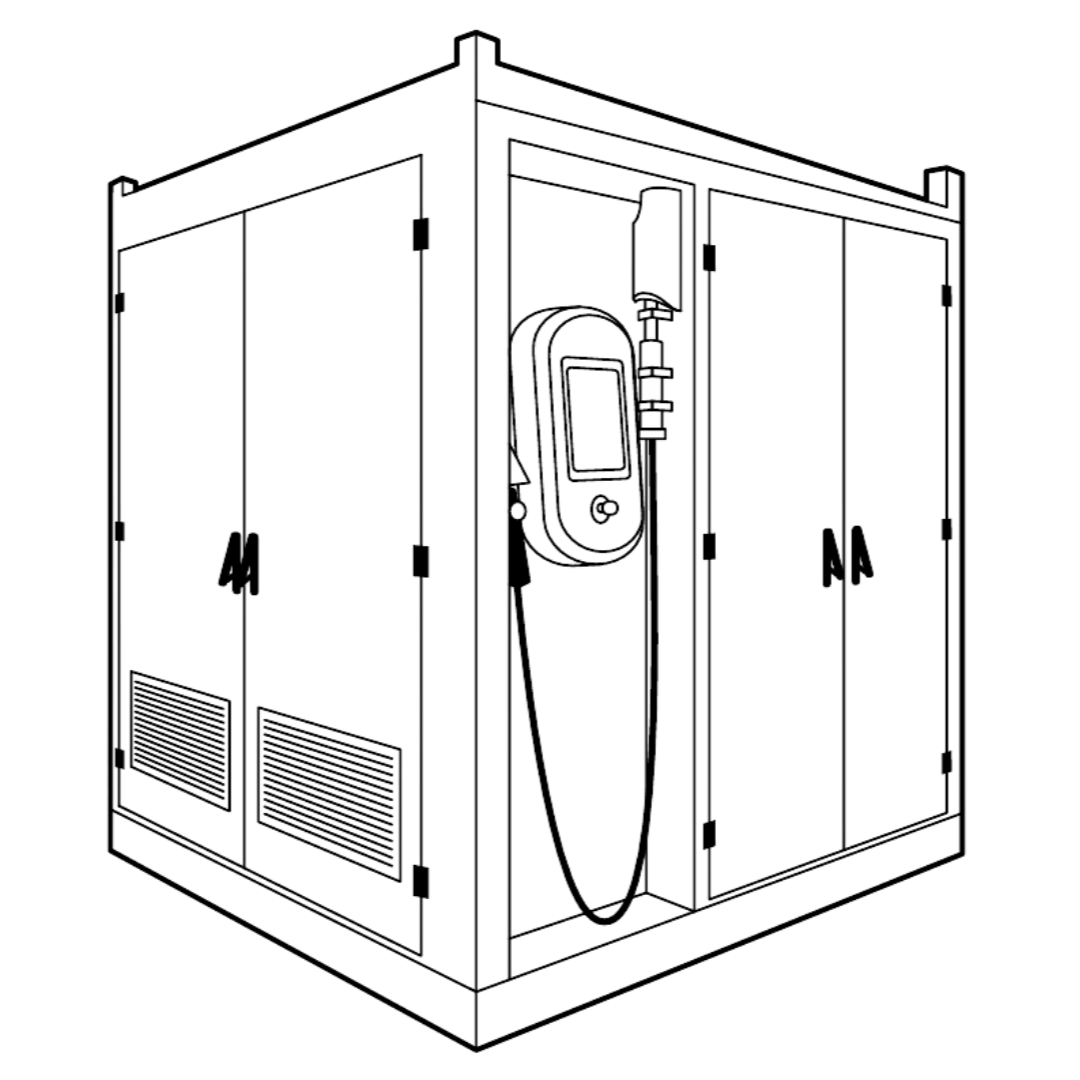

The HyQube is a compact refuelling solution, designed for small to medium deployments. Designed for flexibility, the system offers a modular, scalable, and redeployable configuration, compatible with hydrogen inputs from 30 to 500 bar. Every model includes an intuitive touchscreen interface, providing fully automated, safe, and effortless operation.

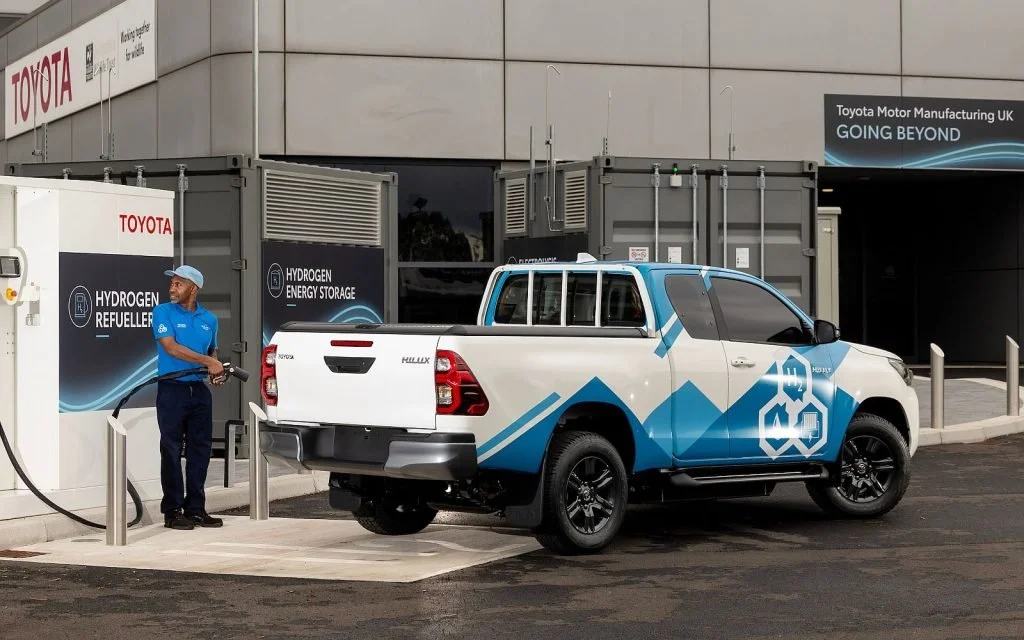

These systems are ideal for low-demand applications, such as fleets of a few cars or a couple of buses. Each HyQube site integrates high pressure storage and electrolyser capabilities, offering a compact and efficient refuelling system. Our technology is already in active use at several key locations, including a Toyota site, where it demonstrates the viability of small-scale hydrogen refuelling.
HyQube 500
The HyQube 500 provides 350 bar refuelling for low-pressure fleets and smaller-scale applications.
-
Operating Pressure: 500 bar
Refuelling Pressure: 350 bar
Refuelling Nozzle Options: 350 bar / 350 bar with IR
Hydrogen Refuelling Capacity: Up to 45 g/s
Filling Protocol: SAE J2601 2010 / CEP TME
Input Pressure Range: 30 - 500 bar
Hydrogen Compression Ratio: 16:1
Hydrogen Compression Capacity: 0.9 - 16 kg/hr
H2 Compressor Type: Air Driven
Ambient Temperature Range: 1 to 55°C
Peak Current Draw: 63A
Power Supply: 400V AV, 50Hz, 63A 3P+N+E
Dimensions: 2200 x 2200 x 2540 mm (W x L x H)
Weight: 2540 kg
Certifications: UKCA/CE, PESR/PED, BS EN IEC 60079-10-1:2021
HyQube 850
The HyQube 850 supports both 350 bar and 700 bar refuelling for broader, higher-performance requirements.
-
Operating Pressure: 850 bar
Refuelling Pressure: 350 bar/ 700 bar
Refuelling Nozzle Options: 350 bar / 350 bar with IR/ 700 bar with IR
Hydrogen Refuelling Capacity: Up to 45 g/s
Filling Protocol: SAE J2601 2010 / CEP TME/ FCSL 700
Input Pressure Range: 30 - 500 bar
Hydrogen Compression Ratio: 16:1/ 64:1
Hydrogen Compression Capacity: 1.1 - 5.3 kg/hr
H2 Compressor Type: Air Driven
Ambient Temperature Range: 1°C to 40°C / -10ºC with optional cold weather package
Chilling: Non-chilled ambient fill as standard/ Chilling available as an option on request
Peak Current Draw: 63A
Power Supply: 400V AV, 50Hz, 63A 3P+N+E
Dimensions: 2200 x 2200 x 2540 mm (W x L x H)
Weight: 2574 kg
Certifications: UKCA/CE, PESR/PED, BS EN IEC 60079-10-1:2021
Small to Medium Scale Stations: Ideal for fleet operators, public transport providers, and private site deployments, the HyQube enables on-site hydrogen refuelling for a variety of vehicle types.
HyQube Refuelling Applications
Research and Development Projects: Used by universities, innovation centres, and technical programmes, the HyQube provides a safe, compact, and redeployable platform for developing and testing hydrogen technologies.
Hydrogen Vehicle Testing and Trials: The HyQube supports manufacturers and operators conducting hydrogen vehicle development, testing, and early deployment phases.
The HyQube is engineered for flexibility, efficiency, and ease of use, delivering high performance in a compact, space-optimised design. It’s ideal for temporary deployments and permanent installations, providing the same user experience as a conventional fuel station.
The HyQube range supports both 350 bar and 700 bar refuelling to accommodate different vehicle tanks. It can be configured for direct compression or cascade refuelling, with automatic touchscreen operation for simple and safe filling.
Contact us today to find out more.
Site Installation
Each station is designed to be modular, rapidly deployable, and relocatable. A simple concrete pad allows quick setup, supported by comprehensive site assessments to meet all safety and separation requirements.
Stations can be configured for temporary or restricted access, and are suitable for both public and private use. They also operate efficiently within electric grid constraints, typically drawing 75–100 kW depending on configuration, using less energy than traditional refuelling setups.
Key Features
-
With a user-friendly touch screen interface, the HyQube ensures automatic and hassle-free refuelling, enhancing convenience for users.
-
The HyQube is a fully self-contained system that delivers up to 700 bar output making it a robust solution for various refuelling scenarios.
-
This feature allows for flexible and reliable hydrogen sourcing ensuring continuous availability and efficiency.
-
The HyQube offers improved energy efficiency and compact design for space optimisation, making it ideal for small to medium-sized refuelling stations.
-
Ensures optimal performance and reliability.
-
Allows for efficient operation and troubleshooting.
-
Provides accurate and reliable flow measurements.
-
Ensures adherence to the latest safety regulations.
Real World Case Studies

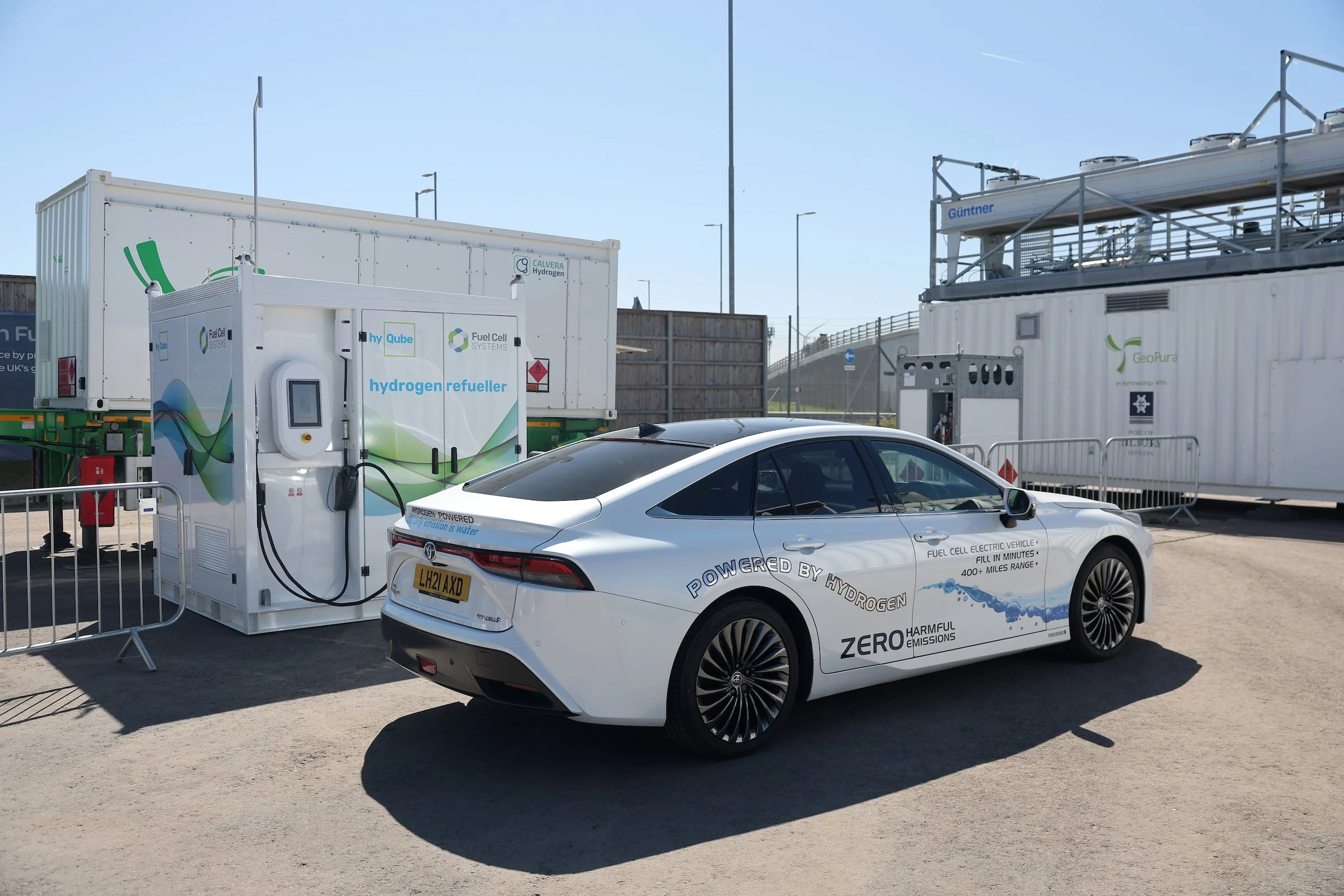

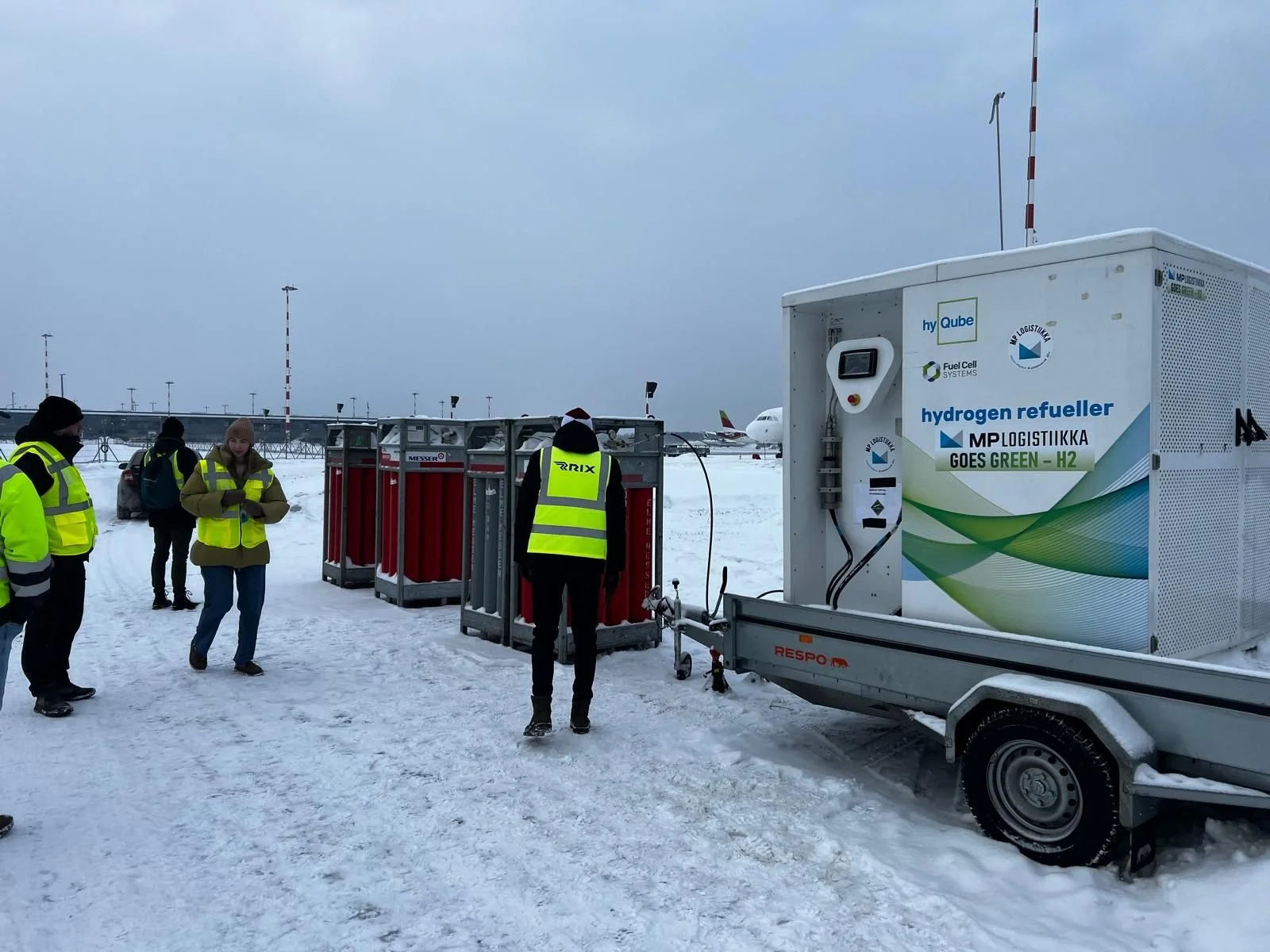

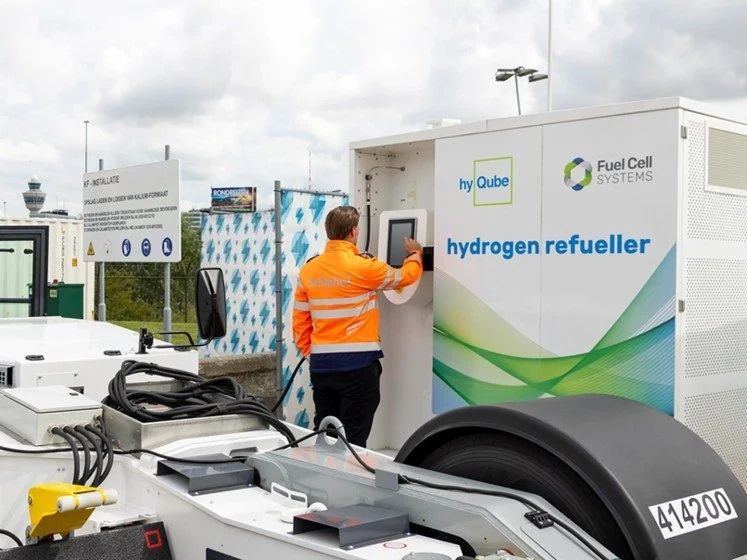

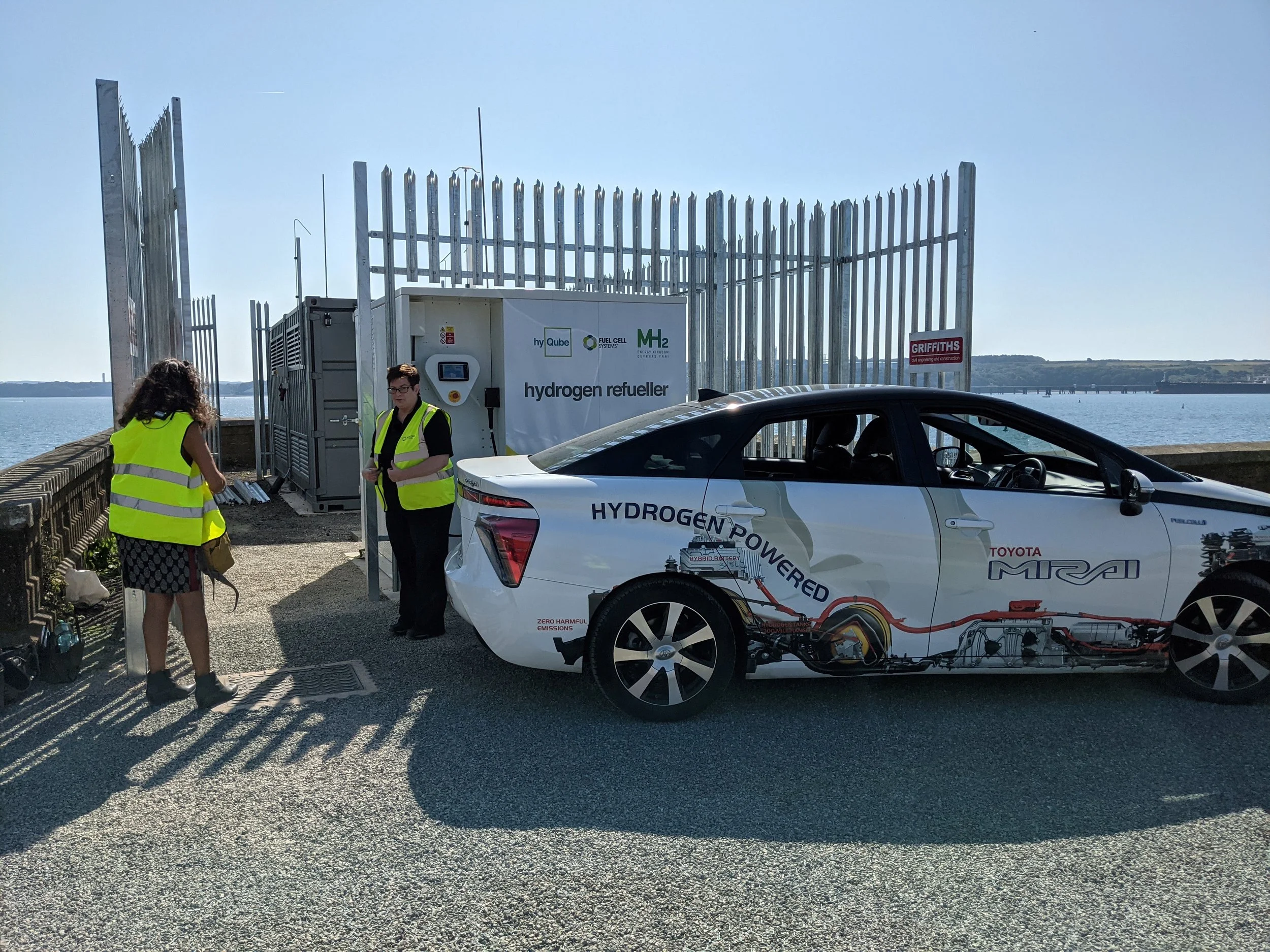

HyQube has been utilised by a broad range of customers to deliver reliable refuelling for vehicle trials and small scale fleet requirements.
Customers include Toyota, South Derbyshire District Council and Wales and West Utilities
The HyQube makes hydrogen refuelling simple, safe, and scalable. Its modular design grows with your operation, while smart cooling and remote monitoring keep everything running smoothly.
From pilot projects to permanent installations, the HyQube adapts to your needs and delivers reliable performance with real-time insights every step of the way.
