Hydrogen Production

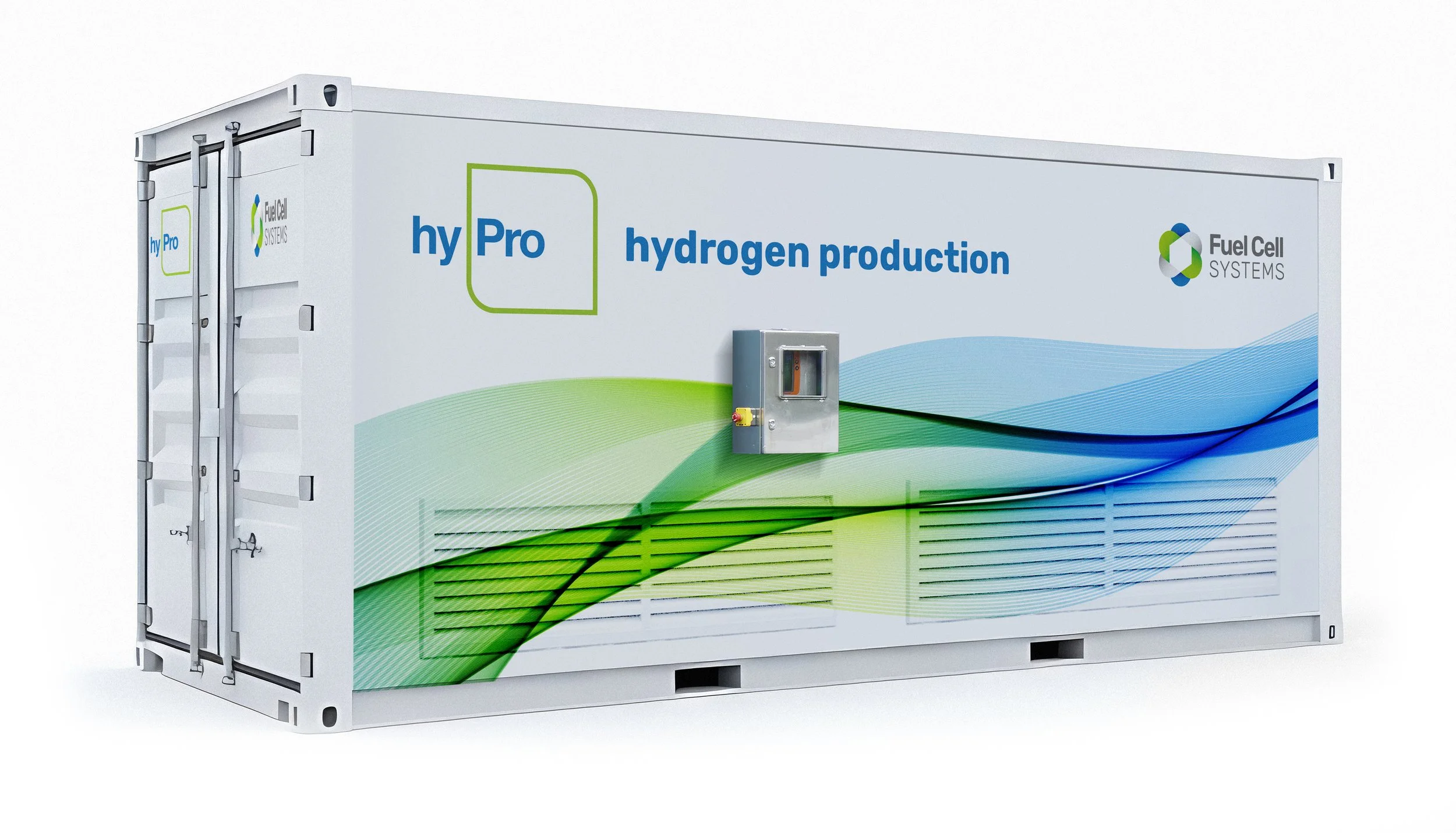

HyPro Electrolyser Containers
The HyPro is a practical and scalable electrolyser container engineered for efficient and reliable on-site hydrogen production. Designed for green hydrogen generation, it supports sustainability goals while providing a dependable source of clean fuel for hydrogen mobility and industrial applications. With modular units for easy maintenance and redundancy, the HyPro ensures continuous operation and adaptability to different scales of demand.
The HyPro delivers streamlined hydrogen infrastructure by combining efficiency, scalability, and convenience in a single containerised unit. Available in 10ft and 20ft container sizes, it offers flexibility for both small-scale and larger operations.

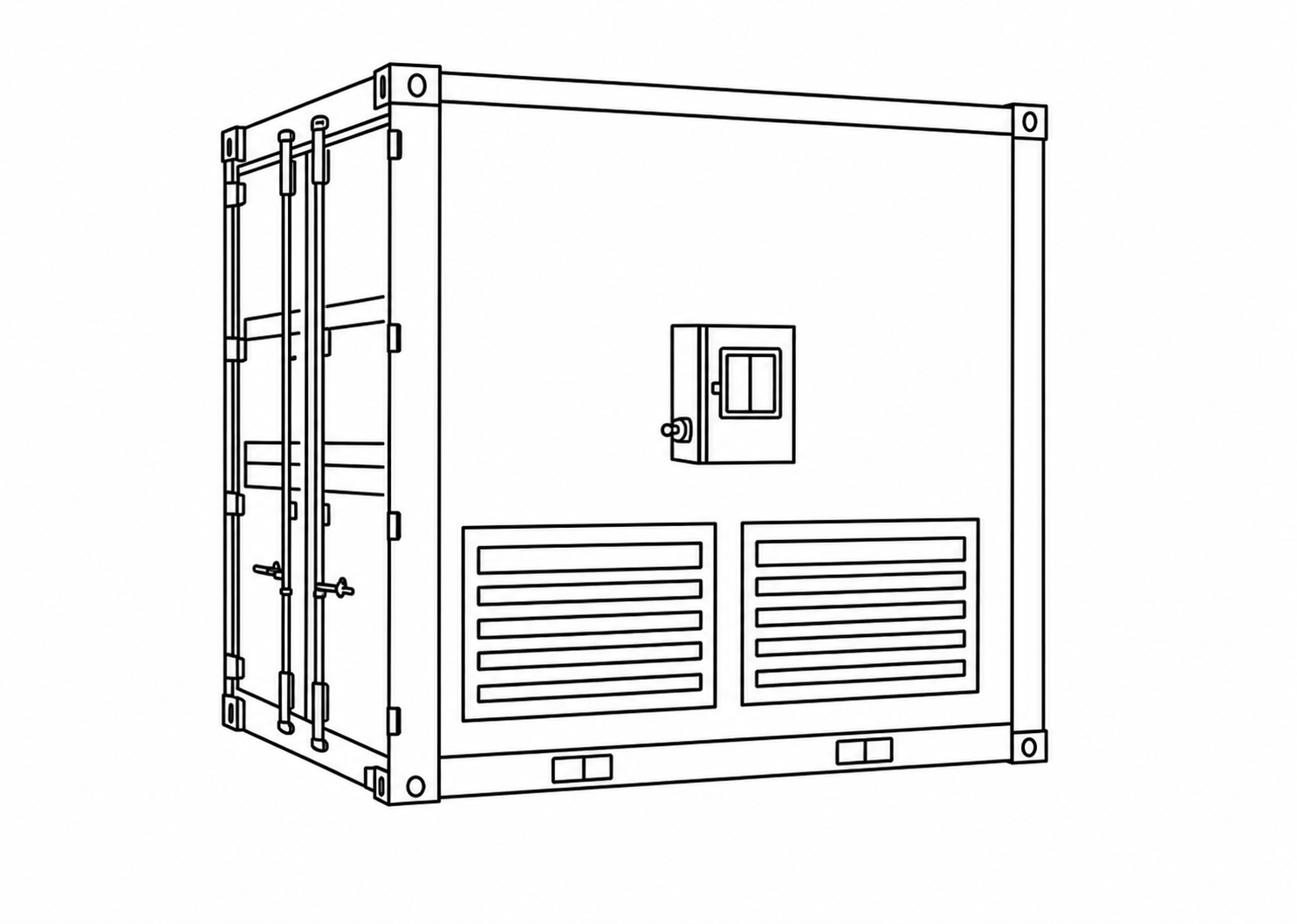

HyPro 10ft Electrolyser Container
Our 10ft HyPro Electrolyser container is ideal for compact sites or lower hydrogen demand.
-
Electrical Supply: 63Amp Three Phase
Water Consumption: Up to 40 litres per hour (depending on quality)
Water Quality: Standard UK tap water
Water Discharge: Up to 36 litres per hour
H2 Production Rate: 5 Nm3 per hour, 10 kg per day
H2 Output Pressure: 35 bar
H2 Output Purity: 99.999%
Ambient Operative Temperature Range: 5 ºC - 45 ºC
Dimensions: 10ft Shipping Container, 3,050 mm x 2,440 mm x 2,590mm
Weight: 5,000 kg approx.
HyPro 20ft Electrolyser Container
For larger scale operations, the 20ft HyPro electrolyser container offers enhanced production capacity.
-
Electrical Supply: 200A Three Phase
Water Inlet: Up to 160 litres per hour (depending on quality)
Water Quality: Standard UK tap water
Water Discharge: Up to 144 litres per hour
H2 Production Rate: 20 Nm3 per hour, 40 kg per day
H2 Output Pressure: 35 bar
H2 Output Purity: 99.999%
Ambient Operative Temperature Range: 5 ºC - 45 ºC
Dimensions: 20ft Shipping Container 6,310 mm x 2,840 mm x 2,590 mm
Weight: 10,000 kg approx.
HyPro Electrolyser Applications
Small to medium scale hydrogen fuelling stations: Ideal for establishing and expanding hydrogen refuelling infrastructure.
Hydrogen vehicle testing: Provides reliable hydrogen production for testing environments.
Research and development projects: Supports innovative projects focused on hydrogen technology.
Pairing with green hydrogen electrolysis: Works in tandem with green hydrogen electrolysis processes for a complete sustainable solution.
Our HyPro electrolyser enables organisations to generate hydrogen directly on-site, reducing reliance on external supply chains and supporting carbon reduction objectives.

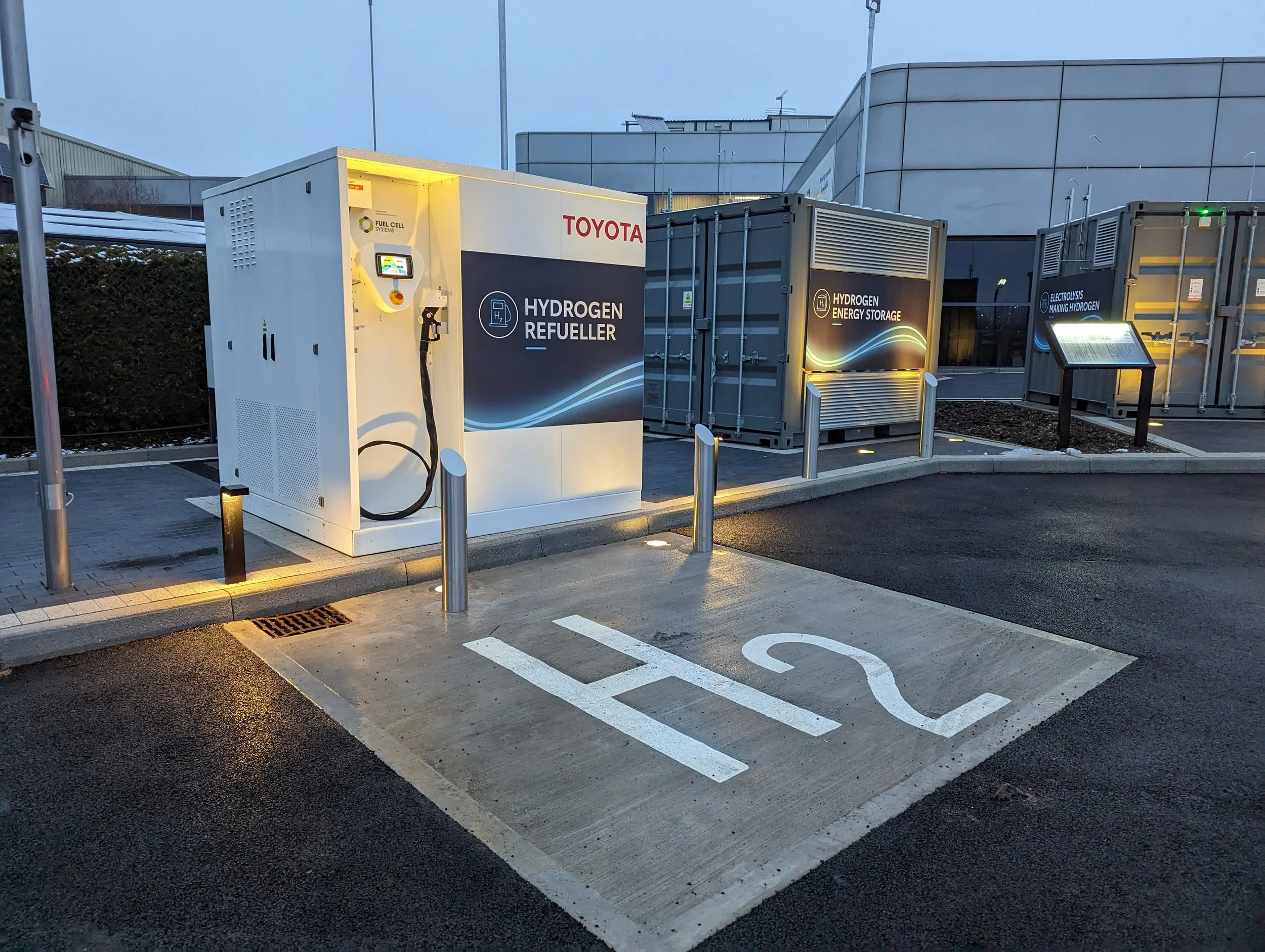

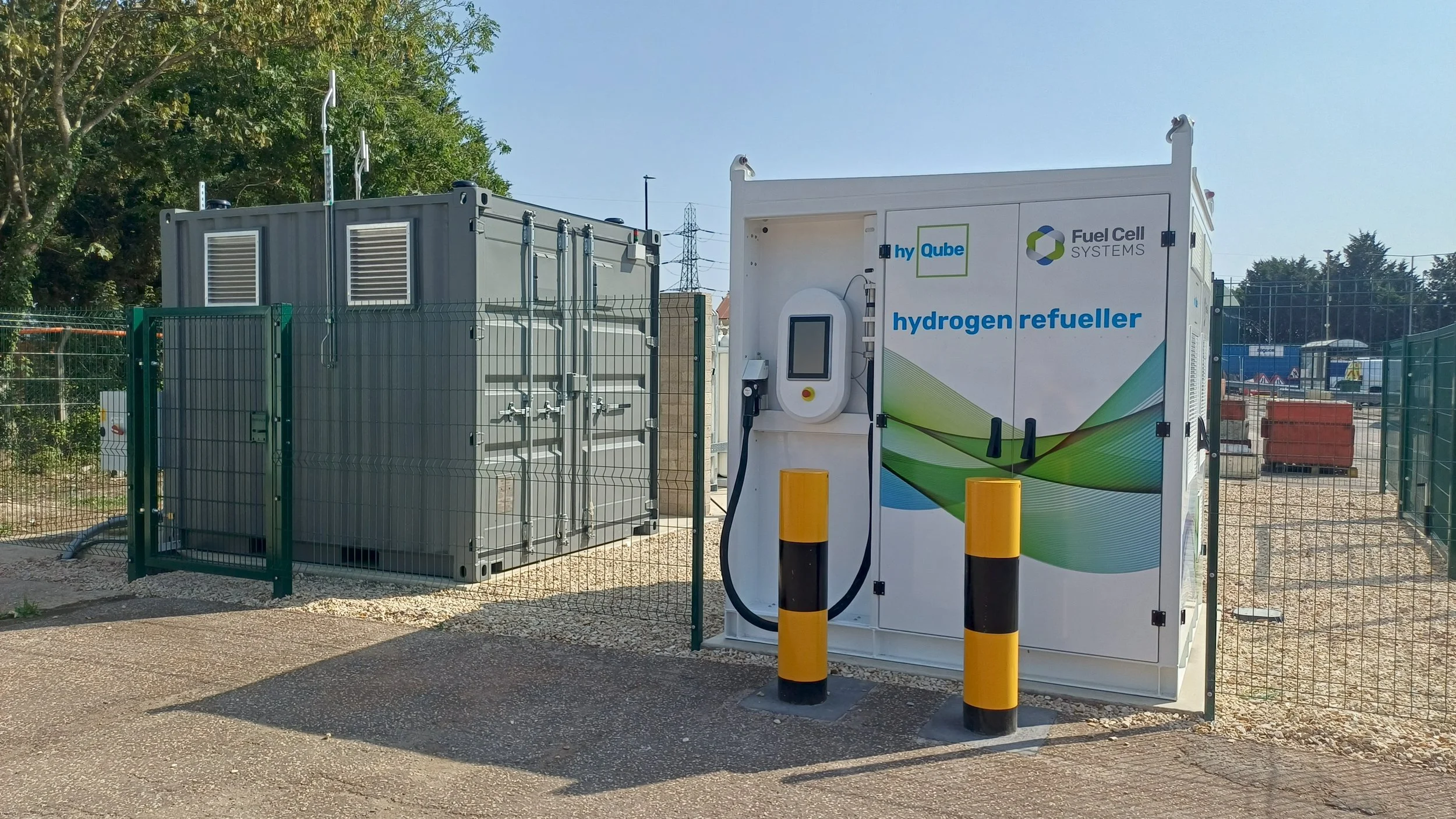

Compatible with our HyQube hydrogen refuelling systems, the HyPro forms part of a seamless end-to-end hydrogen production and dispensing solution. Together, they provide a practical route to achieving your hydrogen production and sustainability goals.
Contact us today to find out more.
