EFOY Hydrogen 2.5
The hydrogen fuel cell for higher power ranges
The hydrogen-powered EFOY Hydrogen Fuel Cell complements SFC Energy’s comprehensive product portfolio with Energy Solutions in the higher power range. Power outputs from 2.5 to 50 kW can be scaled individually. The EFOY Hydrogen Fuel Cell is perfectly suited to replace conventional diesel generators. The EFOY Hydrogen Fuel Cell is emission-free, very quiet and an efficient hydrogen fuel cell solution. Therefore, the EFOY Hydrogen Fuel Cell can also be used in ecologically sensitive areas.
Fuel Cell Technology
Learn how fuel cell technology works and why it’s an efficient energy solution.
Types of Fuel Cells
Discover the different types of fuel cells, including DMFC, PEM and solid oxide.
Benefits of Fuel Cells
Understand the environmental and operational benefits of fuel cells.
Major emergencies, environmental disasters, uncertainties in the energy grid – these are just a few of the reasons that can lead to a power supply failure. The uninterrupted operation of critical infrastructure is of particular importance in order to remain operational in the event of an emergency. Examples of critical infrastructure include security-relevant applications, such as digital radio for authorities and organisations with security tasks (emergency services), along with the mobile communications sector, energy, gas and water supply sectors. Current emergency power solutions are based almost exclusively on generators and conventional battery solutions with limited range. Long term, reliable operation over several days is difficult to achieve.

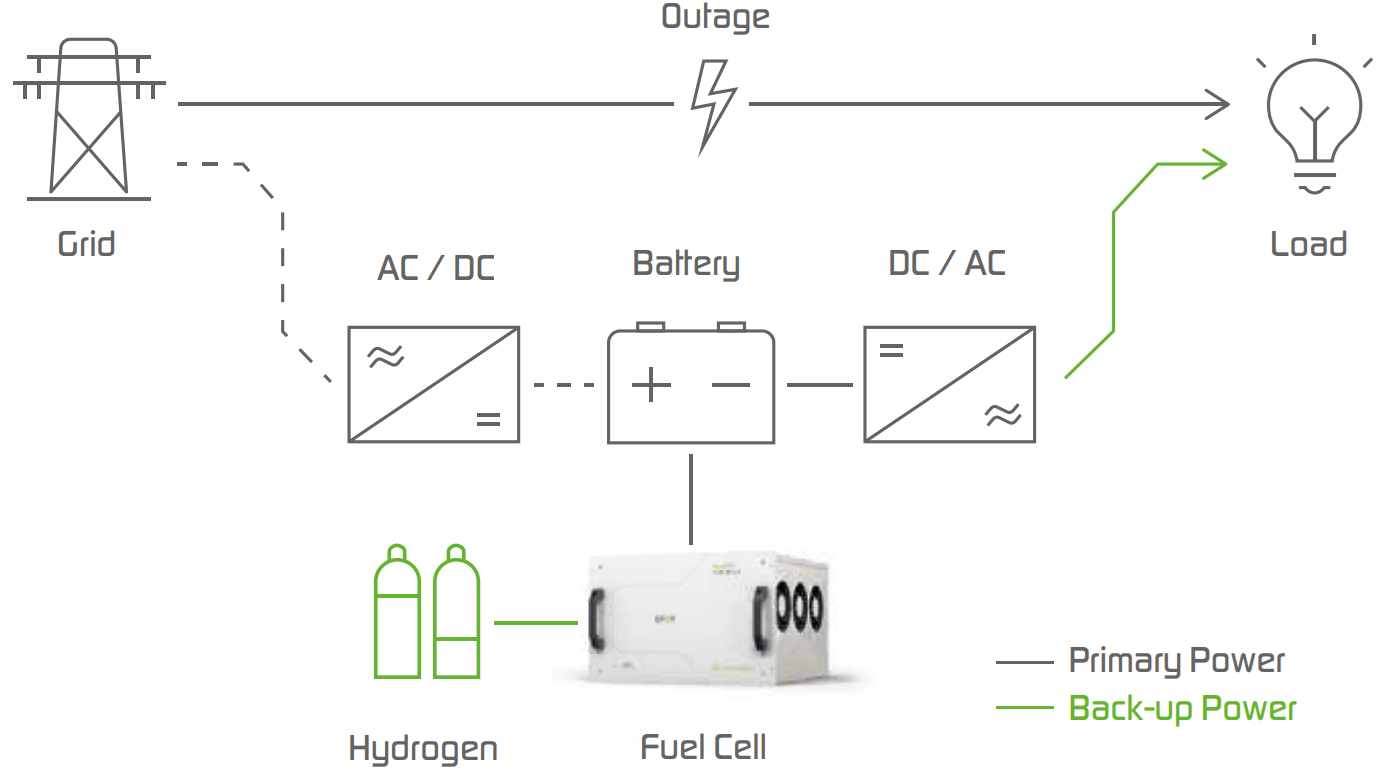

Materials, logistics, disposal costs and additional expenses for maintenance and fuel storage, are significantly reduced by using fuel cells. EFOY Hydrogen Fuel Cells are already in use at numerous locations for backup power supply. The fuel cell modules switch on fully automatically and take over the load after a power failure. Thanks to their low maintenance requirements and the fact that they ensure an uninterrupted takeover of the power supply, fuel cells are the ideal solution for running plants reliably, emission free and self-sufficiently for several days. Unlike diesel generators, solutions using EFOY Hydrogen Fuel Cells do not produce any CO2 or other e
Emergency power supply for critical infrastructure
-
Power output: 2.5 kW
Power after 5,000 operating hours (@44V): 2.0 kW
Nominal voltage: 48 V DC
Supply voltage: 41 – 57.0 V DC
Weight: 28.5 kg
H₂ connection: 1/4" NPT connector (female)
Fuel: Hydrogen H₂
H₂ consumption: 0.06 kg H₂ / kWh
H₂ purity: 3.0 or better
Nominal input pressure at the fuel cell: 0.45 bar
Leakage rate during operation: Approx. 0.35 l H2 / min
Oxygen consumption: Approx. 335 l / kWh
Continuous consumption in standby mode: < 50 W
Operating temperature: + 3 °C to + 50 °C
Storage temperature: - 40 °C to 70 °C Ideal: 10 °C to 25 °C
Maximum operating altitude: Up to 3,000 m above sea level
Dimensions l x w x h: With handles: 535 x 483 x 310 mm Without handles: 498 x 483 x 310 mm
IP protection class: IP 20
Data interface: Internal, between fuel cell and controller: CAN BUS
